Mac Pro 2023 Apple M2 Ultra 24-core CPU 60-core GPU 128GB RAM 8TB SSD

Chip

Apple M2 Ultra chip

• 24-core CPU with 16 performance cores and 8 efficiency cores
• 60-core GPU
• 32-core Neural Engine
• 800GB/s memory bandwidth

Memory

64GB

• 64GB unified memory

Configurable to:

• 128GB or 192GB

Storage:

1TB

• 1TB SSD

Configurable to:

• 2TB, 4TB, or 8TB

Display Support

Simultaneous support for up to eight displays:

• Eight displays with up to 4K resolution at 60Hz
• Six displays with up to 6K resolution at 60Hz
• Three displays with up to 8K resolution at 60Hz

Thunderbolt 4 digital video output

• Support for native DisplayPort output over USB-C

HDMI display video output (per port)

• Support for one display with up to 8K resolution at 60Hz or 4K resolution at 240Hz
• Support for variable refresh rate (VRR), HDR, and multichannel audio

Audio

• Built-in speaker
• 3.5 mm headphone jack with advanced support for high-impedance headphones
• HDMI port supports multichannel audio output

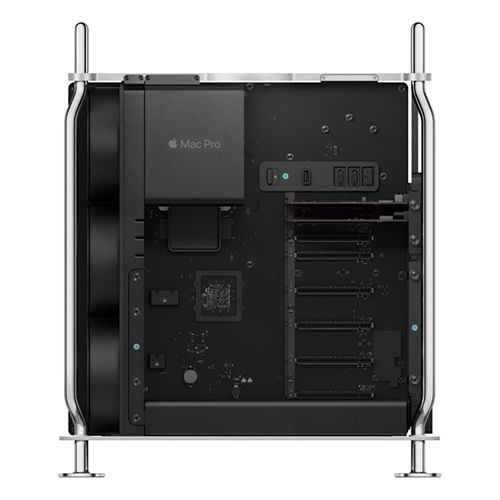

Expansion

Six full-length PCI Express gen 4 slots

• Two x16 slots
• Four x8 slots

One half-length x4 PCI Express gen 3 slot with Apple I/O card installed

300W auxiliary power available:

• Two 6-pin connectors delivering 75W of power each
• One 8-pin connector delivering 150W of power

Connections

Eight Thunderbolt 4 (USB-C) ports

• Six ports on the back of the enclosure and two ports on the top of the tower enclosure or two ports on the front of the rack enclosure
• Support for:
• Thunderbolt 4 (up to 40Gb/s)
• DisplayPort
• USB 4 (up to 40Gb/s)
• USB 3.1 Gen 2 (up to 10Gb/s)

Internal connections

• One USB-A port (up to 5Gb/s)
• Two Serial ATA ports (up to 6Gb/s)

Additional connections

• Two USB-A ports (up to 5Gb/s)
• Two HDMI ports
• Two 10Gb Ethernet ports
• 3.5 mm headphone jack

Communications:

Wi-Fi

• Wi-Fi 6E (802.11ax)

Bluetooth

• Bluetooth 5.3

Two 10Gb Ethernet ports

• 10Gb Ethernet (Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet using RJ-45 connector)

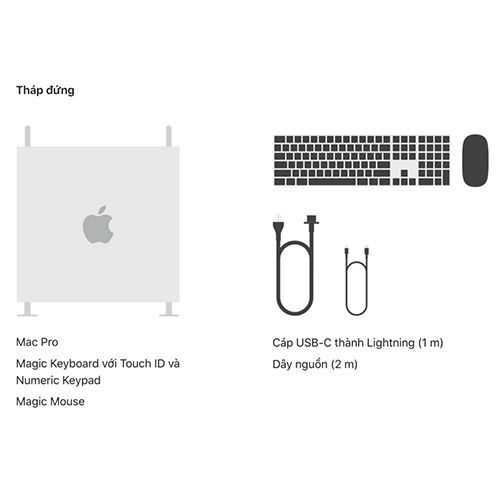

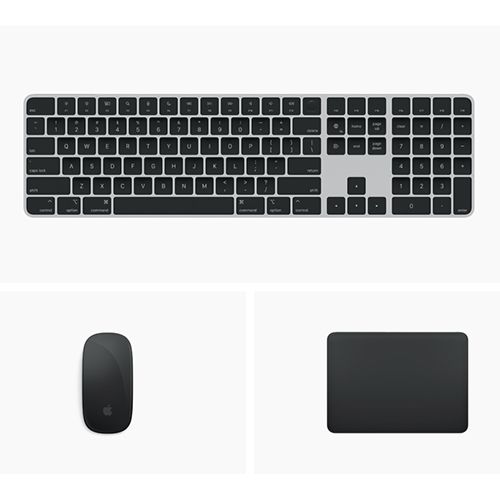

Input Devices

• Magic Keyboard with Touch ID and Numeric Keypad
• Magic Mouse
• Optional Magic Trackpad

Size and Weight

Height: 20.8 inches (52.9 cm)

Height with optional wheels: 21.9 inches (55.7 cm)

Width: 8.58 inches (21.8 cm)

Depth: 17.7 inches (45.0 cm)

Weight: 37.2 pounds (16.86 kg)

Operating System

macOS
